Wire Stripper |
| |
TL-322
|
|
HT-312B |
| |
|
|
|
|
|
| |
|
|
Model |
Capacity mm2 |
TL-322 |
RJ45(8wire), 11.68mm |
|
|
Applicable for stripping coaxial cables (RG58, RG59 and RG62), once-off cutting and stripping exterior insulated sheath, shielded conductor and insulated conductor; hexagon socket key can be used to adjust the cutting depth when operation to ensure the required standard of stripping. |
| |
|
|
Length |
108mm |
Weight |
0.30kg |
|
|
Model |
FOR STRIPPING RG CABLE |
HT-312 |
RG-58/59/6 |
HT-312A |
RG-59/62/6/4C/5C |

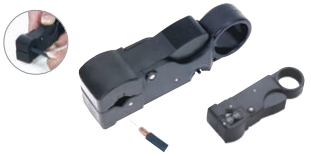

HT-312B |
RG-58/59/62/3C/4C |
HT-312X |
FOR CABLE O.D.FROM 3.5Ø-5Ømm |
HT-312S |
For big cable o.d. Around 10.5Ø such as rg-213 |
|
| |
|
|
| |
|
|
HT-332 |
|
|
| |
|
|
|
|
|
With streamlined design, no replacement cassette is needed and no adjustment for V-BLOCK; Tool has been preset for RG58/59/6;For stripping different materials of cable, use the built-in hex key to align to the sensitive socket and adjust the blade for good results. |
|
|
| |
|
|
Model |
STRIPPING DISTANCE |
FOR STRIPPING RG CABLE |
HT-332 |
2 BLADES MODEL
312 SERIES D=6,8mm
332 SERIES D=4,6,8,12mm |
RG-58/59/62/6/6QS/3C/4C/5C |
HT-332 |
RG-59/62/6/4C/5C |
HT-332 |
RG-58/59/62/3C/4C |
HT-332 |
RG-174 |
|
|
Model |
FOR STRIPPING RG CABLE |
HT-S501A |
For wire(utp/stp)or wire and multi conductor cable from 3.2mm-9mmmax.
Irregulare out-shape insulation can be put into the front ‘v’ and ‘u’ guide, rotatethe tool 1-3 times by index finger for stripping the outer insulations easily. |
HT-S501B |
Same as HT-S501A with an additional adjustable knob for fitting different cable sizes. |
|
| |
|
|
Length |
99mm |
Weight |
0.30kg |
|
|
Length |
122mm |
Weight |
0.30kg |
|
| |
|
|
| |
|
|
LY25-1 |
|
LY25-2 |
| |
|
|
It is applicable for stripping circular PVC cable in the diameter of Ø4-16mm , rubber cable, silicone cable and Teflon cable, cutting depth can penetrate knurled nut to adjust moving blade.
It can change circular shearing into linear shearing, and long stripping area adopts spiral cutting. |
|
Stripping: Ø8-28mm |
| |
|
|
|
|
|
| |
|
|
Length |
170mm |
Weight |
0.15kg |
|
|
Length |
170mm |
Weight |
0.15kg |
|
| |
|
|
| |
|
|
LY25-3 |
|
LY25-4 |
Stripping: Ø28-35mm |
|
Stripping: Ø35-50mm |
| |
|
|
|
|
|
| |
|
|
Length |
170mm |
Weight |
0.15kg |
|
|
Length |
170mm |
Weight |
0.15kg |
|
| |
|
|
| |
|
|
| LY25-5 |
|
LY25-6 |
Stripping: Ø8-28mm |
|
Stripping: Ø8-28mm |
| |
|
|
|
|
|
| |
|
|
Length |
170mm |
Weight |
0.15kg |
|
|
Length |
170mm |
Weight |
0.15kg |
|
| |
|
|
| |
|
|
|
|
|
| |
|
